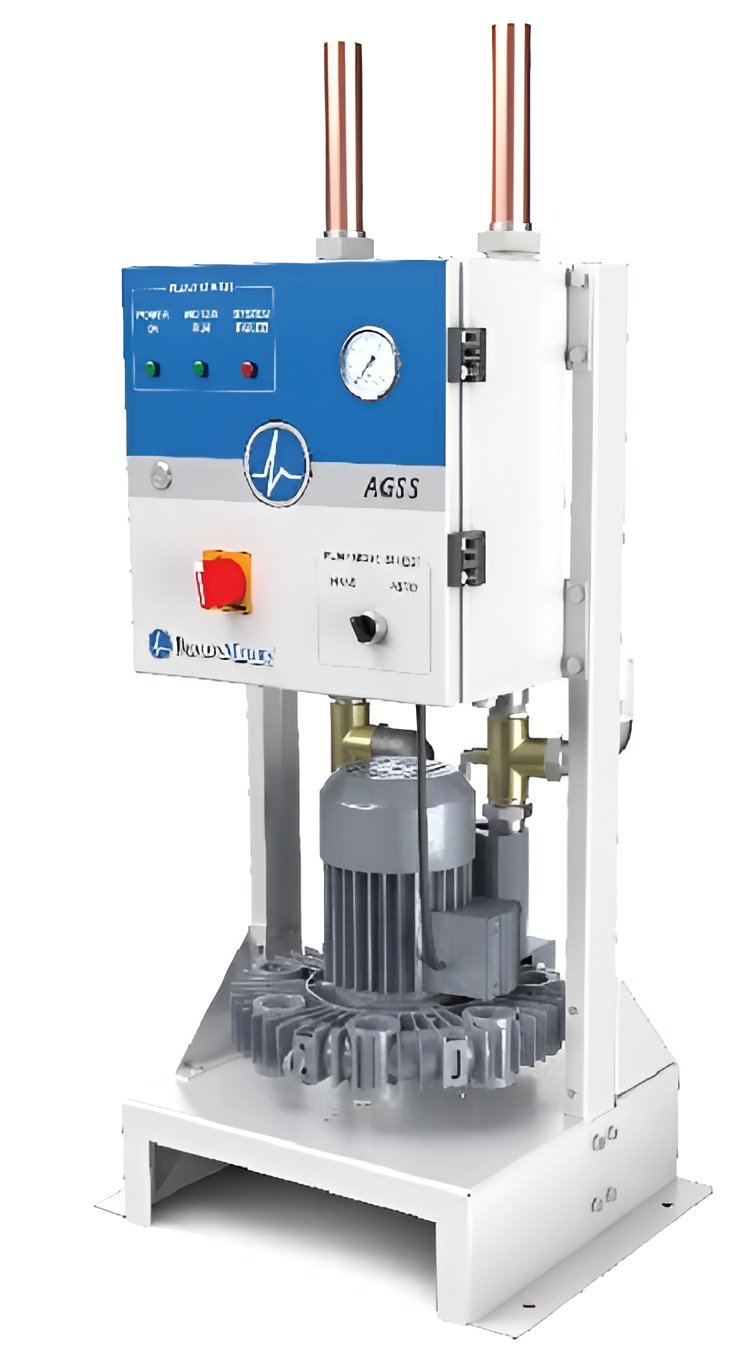

Anaesthetic Gas Scavenging System

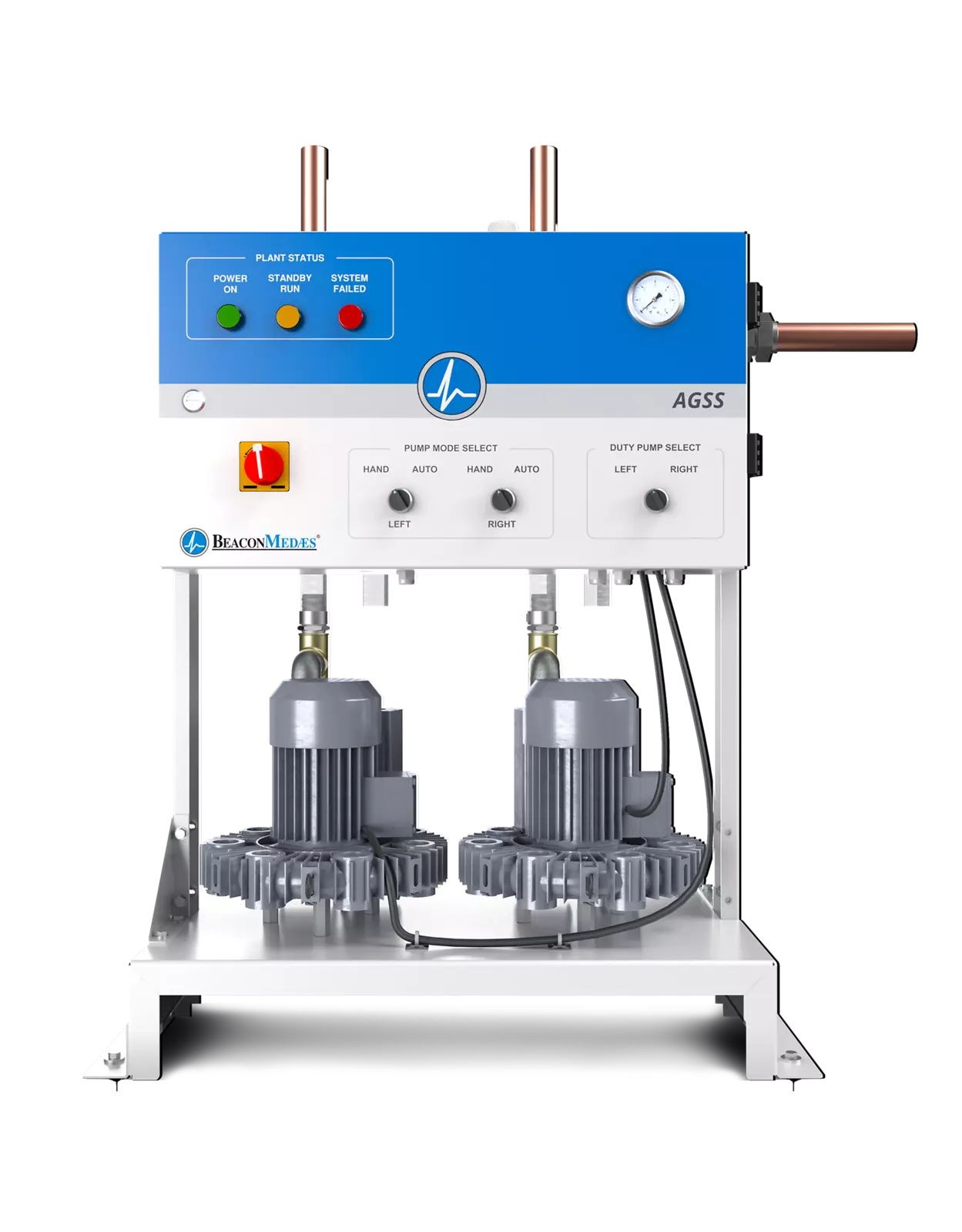

Simplex or Duplex Anaesthetic Gas Scavenging System Advantages

• All control and status indication circuitry shall be limited to 24V

  a.c. A green “MOTOR RUN” and a red “SYSTEM FAILED” indicators

  shall be fitted to the control panel

• A vacuum/flow regulating valve shall be provided and positioned

  at the pump, comprised of a spring-loaded plate valve and inlet

  f

  ilter.

• The vacuum/

  flow regulating valve shall ensure a maximum vacuum of 200

  mbar below atmospheric pressure is not exceeded and shall be

  factory preset at 150 mbar

• An air inlet filter shall be provided for further protection against

  dirt ingress into the pump.

• The vacuum relief valve also ensures that enough flow passing

  through the blower for cooling.

• Quick on-site Installation

• Assured Reliability

• Service friendly Design
