Desiccant Dryer & Pre-Post Filter

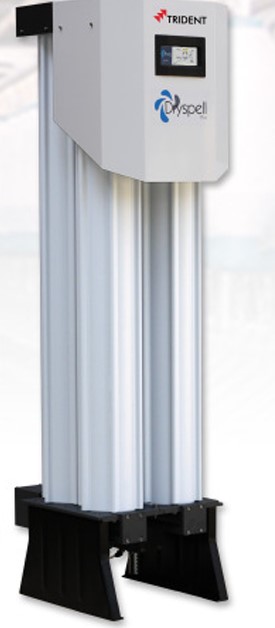

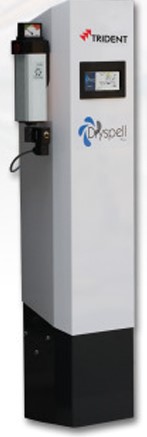

DESICCANT DRYER

Drying Cycle : Moist air from the compressor is sent through the coalescing filter. Here water & oil coalesces and purges through the auto drain valve. The relatively clean air with water vapour passing through the aluminum drying tower filled with desiccant gets completely dried (up to -400C PDP) and then passes through a built in after filter (25 micron). The desiccant fines from the towers are completely removed and clean dry air is let out through the outlet port for use.

Regeneration Cycle: During the regeneration cycle, the sudden depressurisation brings out water molecule strapped in the Desiccant pores to the surface of the beads. A small portion of dry compressed air from the drying tower then passes over the desiccant through the regeneration orifice built in the Top Block. This results in complete regeneration of the Desiccant.

Salient Features:

• Designed For - ISO:7183-1986 (E)

• Dryer Quality Class - ISO:8573-1:2010 (E) class 2

• Pre-Filter Quality Class - ISO:8573-1:2010 (E) class 1

• Noise Level <70 dBA l Pressure Drop < 0.3 kg/cm2

• Aluminum Construction Free From Corrosion & Scale Formation at Inner and Outer sides

• Uses High Crush Strength Adsorbent Materials

Specifications

Maximum Operating Pressure : 16 kg/cm2(g)

Air Inlet Temperature : 380C Max

Operating Pressure : 7 kg/cm2(g)

Pre-Filter Rating : 0.01 Micron

Cycle Time : 4 Minutes

Operating Voltage : 100-240 VAC 50/60 Hz 1 Ph

Outlet Conditions : Dry air at -400C PDP*

Purge Loss : 15±1%

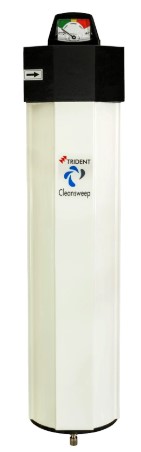

PRE & POST FILTER

Any kind of pneumatic tool perform its best when it is filtered of the various contaminants at regular intervals of time. These contaminants could be dirt, oil and water that come unfiltered through compressed air. The oil and water mostly exist in liquid or vapour forms. Getting rid of these contaminants is a must to prevent any unfavourable effects on your end products. Trident produces coalescing filters that help remove liquid oil and water. The micro filter manufacturing process consists of a filter media made up of boro silicate micro glass fibres. On the other hand, the oil in vapour form is removed using activated carbon filters.
