Digital Gas Alarm

Digital Alarm system with latest Surface Mounted Technology (SMT). Using parallel RISC processing technology medical gas pressures are displayed on high glow seven segment LEDs.

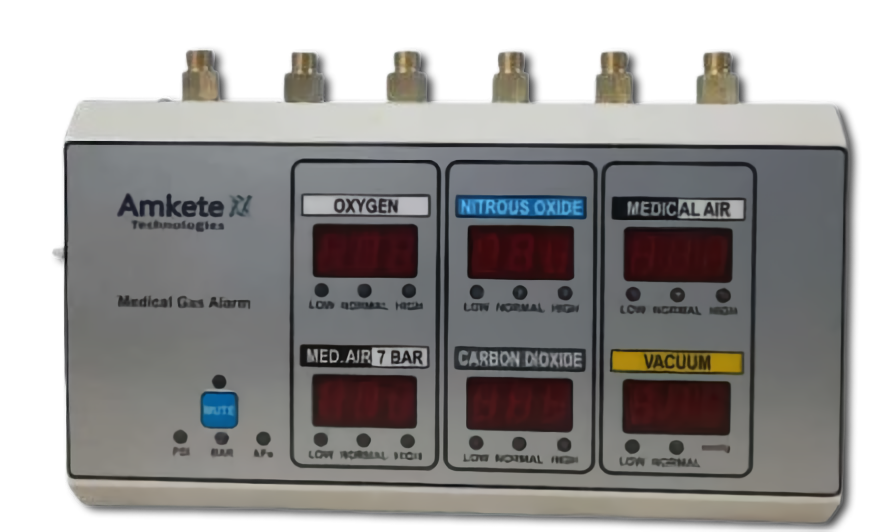

As an area Alarm, it is capable of continuously monitoring up to 4 - 6 gas services. Programmable units of measure of each gas to read PSI, BAR, kPa or mmHg. Alarms are preset with NFPA/ HTM alarm values but are field adjustable for lower and upper limit alarm values.

Each specific Area service for the Alarm is provided with an LED digital read-out. The digital read-out provides a constant indication of each service being measured. It will indicate a green <NORMAL= & a red <HIGH= or <LOW= alarm condition.

In case of high and low pressure situation audible Alarm will sound with Strobe seven segment display. Pushing the <MUTE= button will cancel the audible alarm, but the unit will remain in the alarm condition with Flashing Seven Segment display until the problem is rectified.

The default set point on the Alarm is +/-20% variation from normal condition (hospital working pressure). In user selectable mode the following parameters are adjustable: High/Low set-points, Imperial/Metric units. Maximum Alarm input pressure should not exceed 1.5 times of hospital working pressure.

Features:

• Digital gas alarm System with ultra-high speed micro

  controllers

• Digital gas alarm System with ultra-high speed micro

  controllers

• Digitally calibrated sensors. No need of calibration/ re-

  calibration at site

• User selectable gas pressure units: PSI / BAR/ kPa

  with LED indicator

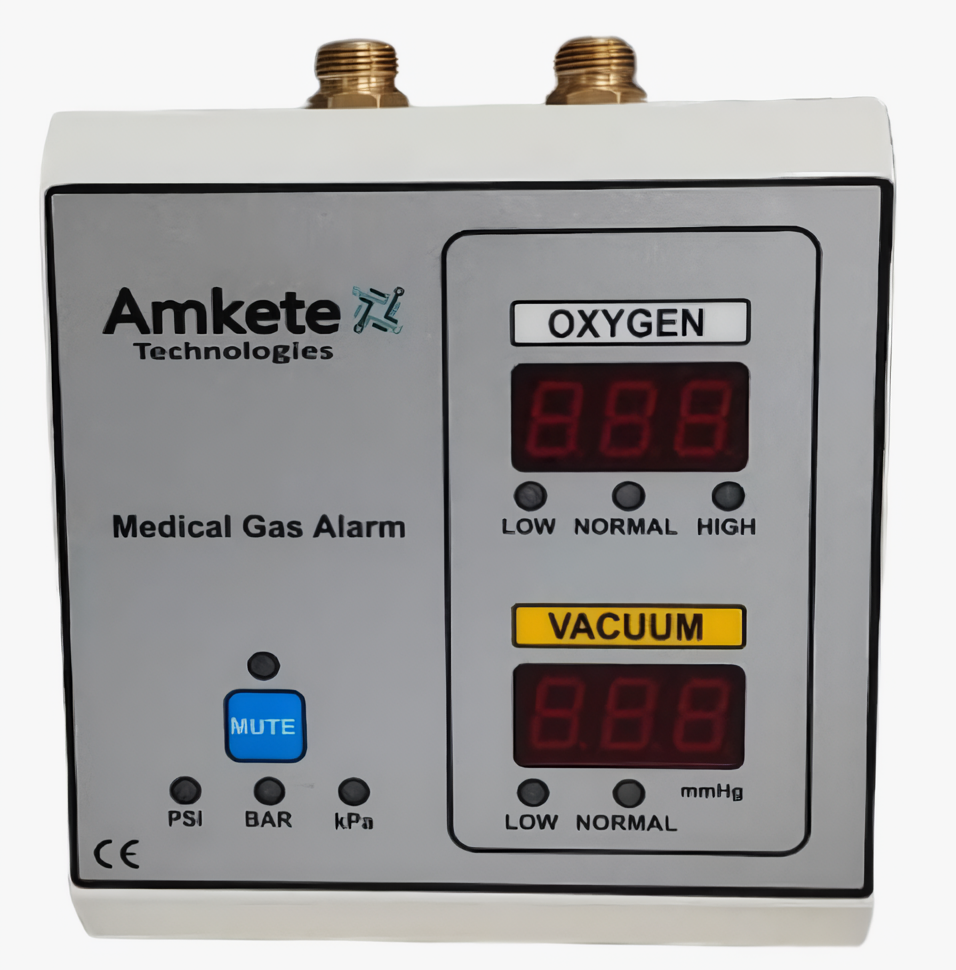

• Upgradeable from 1 Gas service to 4 - 6 Gas services

• User selectable vacuum pressure units: mmHg

• Individual monitoring of all the gases using 3 nos

  Seven segment display

• BAR pressure accuracy up to 2 decimals (e.g. 4.20

  BAR)

• Self-diagnostic with error message display for ease

  of problem identification

• Digital display with trend indicator using 3 high glow

  LEDs for each service monitored

• User programmable high/low set points for each

  individual gas service

• Automatic restart after getting input voltage

  without any calibration

• Isolated potential contacts for remote annunciator

  applications

• Audio and visual alarm indicators

  • Metallic fixture on sensor to prevent leakage of

  pressure
