Step-by-Step Overview of MGPS Installation

Introduction

A Medical Gas Pipeline System (MGPS) is a critical part of hospital infrastructure, ensuring the safe and continuous delivery of oxygen and other medical gases to patients. The installation of an MGPS requires precision, compliance with international standards, and professional execution. This guide provides a step-by-step overview of the installation process, highlighting essential stages that must be meticulously followed.

Step 1: Site Survey & Planning

The first step in the MGPS installation process involves a thorough site survey and planning. A qualified team conducts an assessment of the hospital layout, identifying key areas where medical gas outlets will be installed. This survey ensures that the system design accommodates the specific needs of the facility, taking into account factors such as the number of rooms, types of procedures conducted, and the volume of gases required. Effective planning is crucial, as it lays the groundwork for a smooth installation process.

Step 2: System Design & Compliance

Once the site survey is complete, the next phase is system design and compliance with regulatory standards. The design should include detailed drawings outlining the pipeline routes, gas supply requirements, and safety measures. Compliance with local and international regulations is paramount, as it guarantees the safety and reliability of the system. This stage often involves collaboration with engineers and healthcare professionals to ensure that the design adheres to stringent safety standards, such as those set by the National Fire Protection Association (NFPA) and the American National Standards Institute (ANSI).

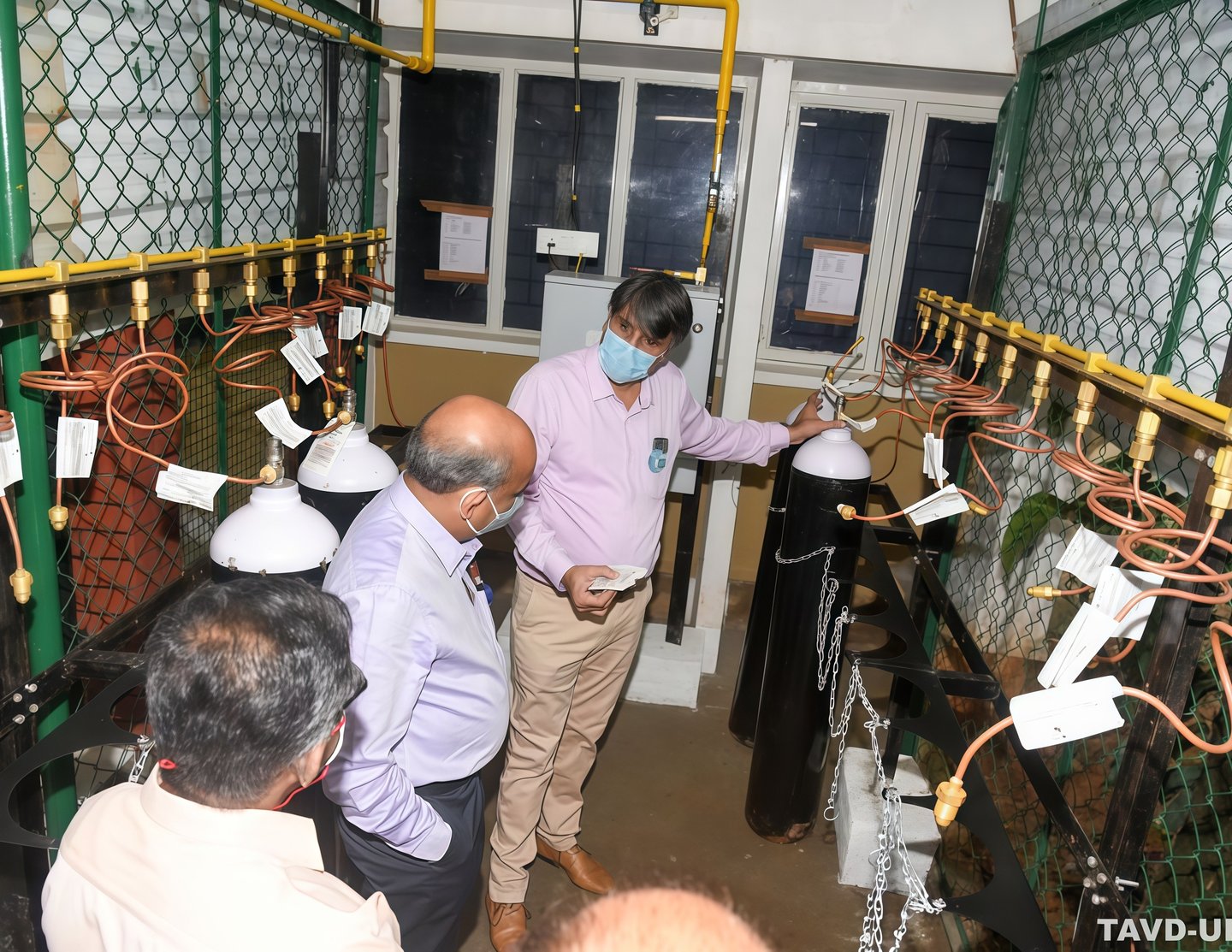

Step 3: Central Supply Installation

The central supply installation comprises setting up bulk gas storage systems and monitoring equipment. This installation should occur in a secured area, away from daily hospital operations, to ensure safety. Bulk tanks for gases such as oxygen and nitrous oxide are connected to the pipeline network through pressure regulators and isolation valves, which are critical for maintaining the integrity of the system.

Step 4: Pipeline Network Setup

Following the central supply installation, the pipeline network is set up. This stage includes the installation of gas pipelines throughout the hospital, connecting the central supply to terminal units in patient rooms and treatment areas. During this process, it is vital to adhere to industry standards to ensure proper gas flow and prevent contamination. The pipes must be clearly marked and accessible for future maintenance.

Step 5: Outlet & Terminal Units Installation

Once the pipeline network is in place, the installation of gas outlets and terminal units is conducted. These units are the final connection point for delivering medical gases to patients. Proper positioning of these outlets within the rooms ensures ease of access for healthcare providers during critical procedures. Each unit must be tested to ensure it operates correctly under the designed pressure and flow rates.

Step 6: Alarm & Safety Systems Integration

Safety is a paramount concern when installing an MGPS. Therefore, integration of alarm and safety systems is the next critical step. Gas monitoring alarms must be installed in strategic locations to provide alerts for any gas leakages, pressure drops, or malfunctions. These systems are vital for patient safety and must be regularly calibrated and tested for accuracy.

Step 7: Testing & Commissioning

The final phase of the MGPS installation is the testing and commissioning of the entire system. This process includes rigorous inspections and functionality tests to ensure that every component of the system operates as intended. Specialized technicians conduct these tests, checking for leaks, verifying pressure levels, and ensuring compliance with the established safety standards. Upon successful completion, the system is certified for use, ensuring a reliable supply of medical gases to patients.

Conclusion

A well-planned and properly executed MGPS installation ensures patient safety, operational efficiency, and compliance with healthcare standards. At ME Devices, we provide end-to-end MGPS installation and commissioning with international certifications for hospitals across India.
